Model No.
KN 12000 230V, 50Hz Connect

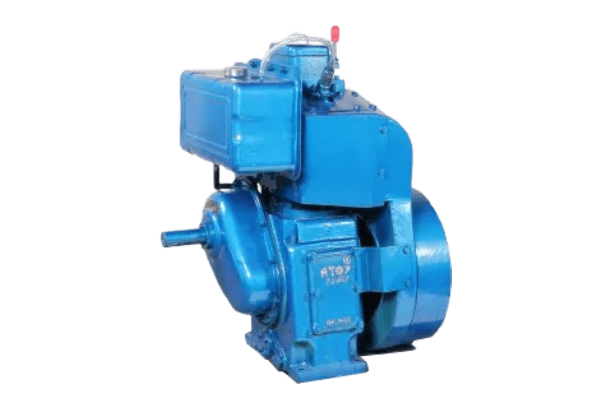

| Single Cylinder Engine | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Power (HP / kW) | 5 / 3.7 | 5 / 3.7 | 6.5 / 4.8 | 8.5 / 5.5 | 8.5 / 5.9 | 10 / 7.35 | 12.5 / 9.2 | 15 / 11.1 | |||
| Rated Speed (RPM) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |||
| Bore / Stroke (mm) | 85 / 80 | 85 / 80 | 85 / 110 | 87.5 / 110 | 95 / 110 | 102 / 116 | 114.3 / 116 | 120 | |||
| Cubic Capacity (cc) | 363 | 553 | 625 | 661 | 779 | 898 | 1128 | 1128 | |||
| S.F.C (g/kWh) | 235 | 235 | 250 | 250 | 250 | 250 | 250 | 250 | |||
| TRB / BB | TRB | TRB | TRB | TRB | TRB | TRB | TRB | TRB | |||
| Net Weight (kg) | 120 | 145 | 145 | 165 | 180 | 180 | 180 | 200 | |||
| Gross Weight (kg) | 190 | 225 | 235 | 235 | 250 | 250 | 250 | 270 | |||
| Packing Size (mm) | 520×585×735 | 660×690×915 | 660×690×915 | 660×690×915 | 660×690×915 | 660×690×915 | 660×690×915 | 660×690×915 | |||
| Lube Oil Sump | 1.7 L 20W40 | 3 L 20W40 | 3 L 20W40 | 3 L 20W40 | 3.5 L 20W40 | 3.5 L 20W40 | 3.5 L 20W40 | 4.5 L 20W40 | |||
| Fuel Tank Capacity (L) | 6.5 | 8 | 8 | 8 | 8 | 10 | 10 | 12 | |||
| Model No. | ATPS25 | ATPS30 | ATPS35 | ATPS50 | ATPS75 | ATPS100 |
|---|---|---|---|---|---|---|
| kVA | 2.5 | 3 | 3.5 | 5 | 7.5 | 10 |
| Type | Transformer | Transformer | Transformer | Transformer | Transformer | Transformer |
| Body Type | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Winding | Copper | Copper | Copper | Copper | Copper | Copper |
| PF | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max Load AMP | 10 | 12 | 14 | 20 | 30.8 | 41.8 |
| RPM | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Efficiency (%) | 76 | 79 | 80 | 76 | 79 | 80 |
| Weight (Kg.) | 45 | 52 | 61 | 77 | 80 | 91 |
| Frame Size | 112 | 112 | 112 | 132 | 132 | 132 |
| Engine HP | 5 | 6.5 | 8 | 8.5 | 10.5 | 15 |
